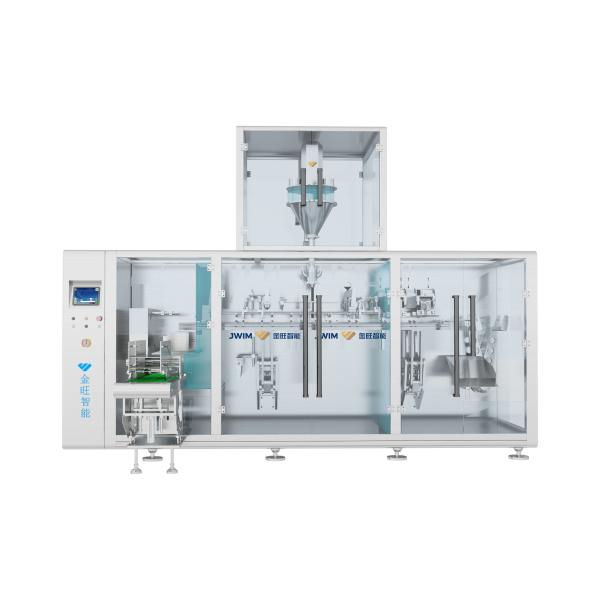

Premade Pouch Machine 5g-300g Prefabricated Bag Powder Packaging And Sealing Machine
1.Description of the Granule Automatic Pouch Packaging Machine
Dgd-220B full-automatic horizontal bag feeding bagging machine includes bag taking mechanism, bag opening mechanism, air blowing mechanism, filling mechanism, heat sealing, cold sealing shaping and other mechanisms. The coordinated action of each mechanism is completed through the mechanical connecting rod and cam structure, and the position signal is fed back by the encoder on the main shaft. Under the programmable control of PLC, the functions of bag taking → bag opening → detection → filling → sealing → finished product are realized.
The machine has reasonable design, novel appearance, circular arc frame and complete dust removal system, which meets the production requirements of safety and environmental protection. At the same time, by changing the filler, the automatic filling of powder, particles and other materials can be realized on the machine. It is applicable to the packaging production of all kinds of prefabricated bag products.
2.Parameters of the Granule Automatic Pouch Packaging Machine
| Productive Power. | 40-45bags / min * actual capacity depends on packaging materials |
| Applicable Bag Size | W100-215mm L140-300mm |
| Packaging Capacity | ≤200g |
| Filling Precision | ±1% |
| Air Pressure | 0.5-0.7MPA |
| Power | AC380V 50Hz/3.5KW |
| Equipment Size | 3350×2500×2800mm(L×W×H) |
3.Features of the Granule Automatic Pouch Packaging Machine
(a)The equipment is mainly used in the production of various prefabricated bags, with beautiful packaging and good molding, and almost no waste of packaging materials and materials.
(b)More environmentally friendly: the whole machine is closed design, isolated from dust in the machine, and equipped with stainless steel dust removal pipeline system, which is environmentally friendly and pollution-free( Dust removal pipe and dust collector are optional functions).
(c)Easy maintenance: Upturnable ironing block structure, convenient for maintenance and cleaning.
(d)The bag can not be opened and filled, and the bag can not be used again.
(e)More stable: change single clip to double clip function, and the bag feeding process is more stable.
(f)The Spanish CAM technology is adopted. The internal cam is widely used for the cam, which does not run and has higher operation accuracy.
(g)Optimize the bag taking structure, prolong the bag suction time and take the bag more accurately; At the same time, the large capacity bag placing mechanism can store about 600 bags at most, reduce the bag placing frequency and improve the production efficiency when the equipment is running.
(h)More durable: exquisite design technology and parts processing of imported CNC center, high precision and high standard ensure the stability and durability of each part.
(i)Temperature control integrated module: real-time monitoring of temperature changes, touch screen operation control, at a glance, to ensure the stability and reliability of equipment operation to the greatest extent.
(j)The integrated control system customized by Schneider Electric of France is adopted, which has good compatibility, high stability and lower energy consumption.
(k)Multiple safety protection (Japanese SMC vacuum generator, air source processor with air pressure detection, etc.) to ensure the stability and reliability of equipment operation to the greatest extent.
(l)It is equipped with a small air storage tank to reduce the impact of external air pressure fluctuation on bag loading and bag opening. At the same time, the air source pressure detection system is equipped as standard.
